• Features:
• *Compact plastic case，suitable for use under poor working conditions. Test at any angle, even upside down

Features:

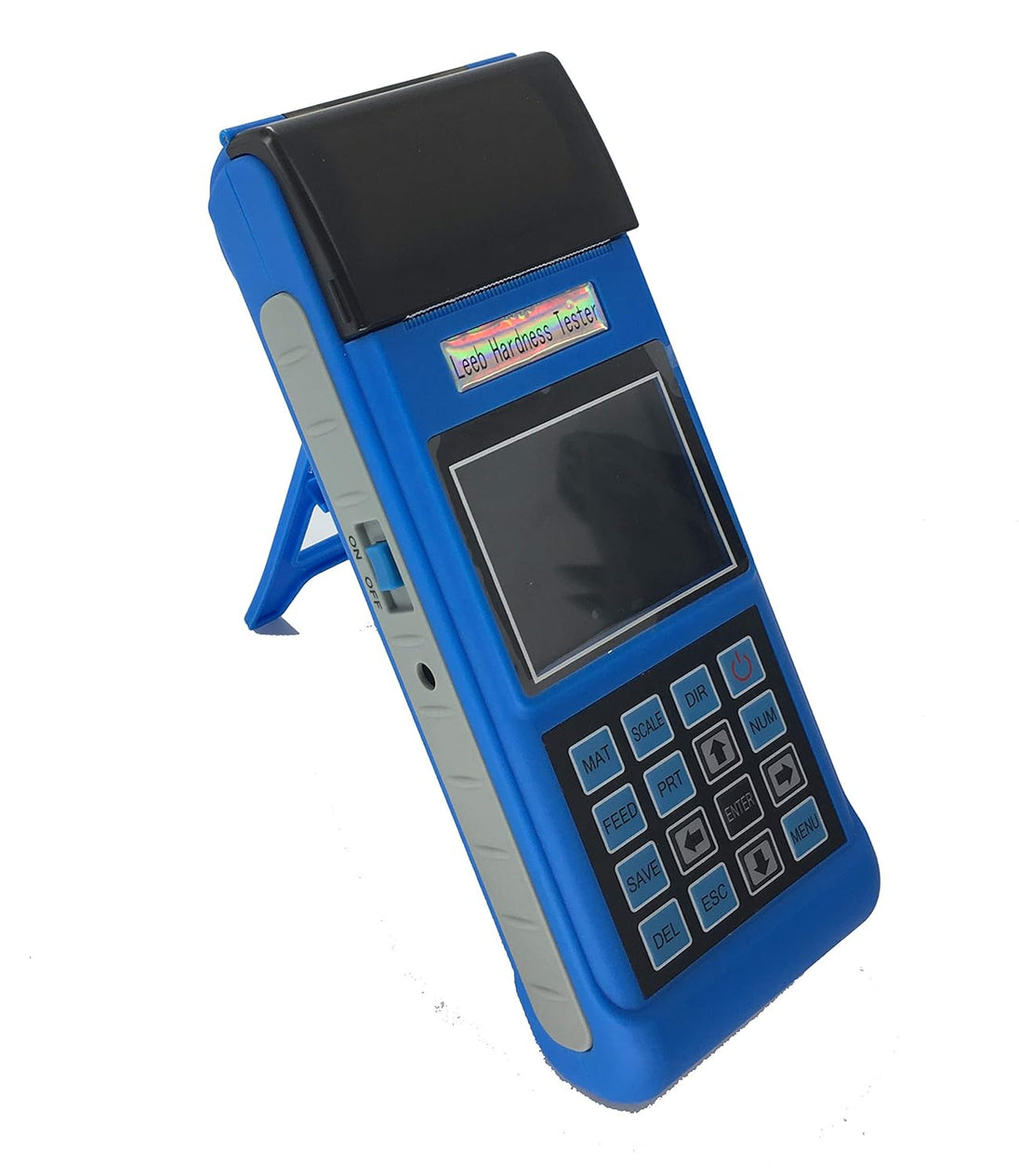

Large screen(240*320 TFT display), showing all functions and parameters.

Test at any angle, even upside down.

Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.

Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.

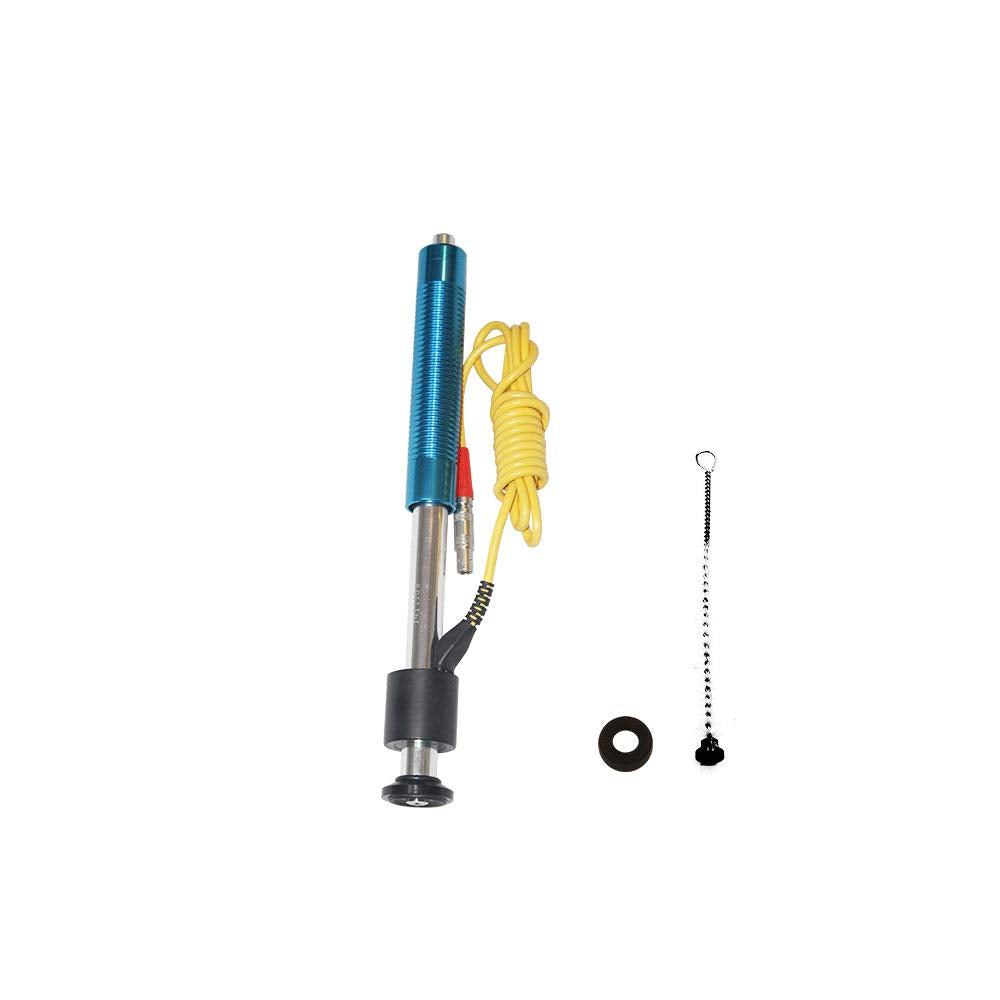

Seven impact devices are available for special application. Automatically identify the type of impact devices.

Large capacity memory could store 600 groups (Relative to average times32～1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.

Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.

Battery information indicates the rest capacity of the battery and the charge status.

Description:

User calibration function.

USB port with the PC humanity multi-functions data proceeding software.

Original imported high speed thermal printer support the immediate printing function. It can save data permanently.

NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).

Technical Specifications:

Measuring range : HLD (170-960)，HRC (17.9-69.5),HB (19-683)，HV (80-1042)，HS (30.6-102.6)，HRA(59.1-88)，HRB (13.5-101.7)

Impact Directions : Up, down, horizontal, slanting up, slanting down

Measuring Materials : Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel

Hardness Scales : HL、HB、HRB、HRC、HRA、HV、HS.

Tensile Strenght : 374 to 2652 N/m 2

Display : 128*64 digital matrix LCD

Memory : 600 groups max.（relative to impact times 32～1）

Work Voltage : 9V/500mA.

Interface Port : USB

Dimensions : 210x85x45mm (host)

Weight : 0.6kg (host)

Continuous Working Period : about 200 hours (with back light off, no printing)

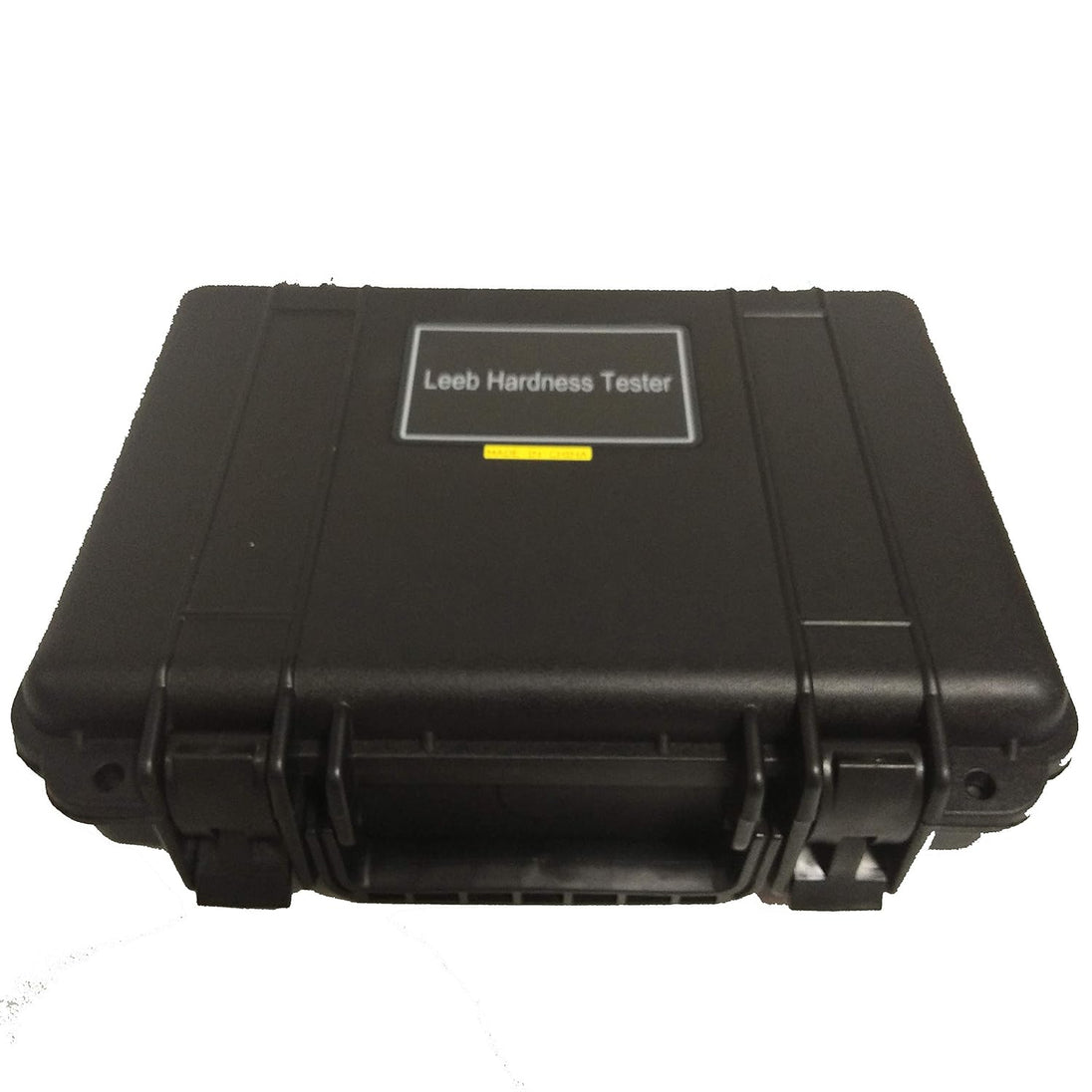

Configuration:1Main Unit ,2D type impact device ,3Standard test block, 4Cleaning brush ,5Small support ring ,6Battery Charger ,7Paper for printing ,8Manual ,9Data Pro software ,10Communication cable ,11Instrument case
