VTSYIQI Pocket Colorimeter 8MM Precision Color Meter Tester for Coating Printing APP Color Matching

VTSYIQI Pocket Colorimeter 8MM Precision Color Meter Tester for Coating Printing APP Color Matching

常规价格 $218.00 USD
常规价格 促销价 $218.00 USD
销售额 售罄
结账时计算的运费

About this item

  • Measurement structure: D/8, including specular reflection light (SCI)
  • Measurement indicators: Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), blackness (My, dM), stain fastness, Color fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M), metamer index Milm, Munsell, hiding power, strength (dye strength, tinting power)
  • Lighting source: LED (full band balanced LED light source)
  • Measuring caliber: 8mm Wavelength interval: 10nm
  • Wavelength range: 400-700nm Measurement stability: ΔE≤0.1 (measure the whiteboard 30 times every 5s)

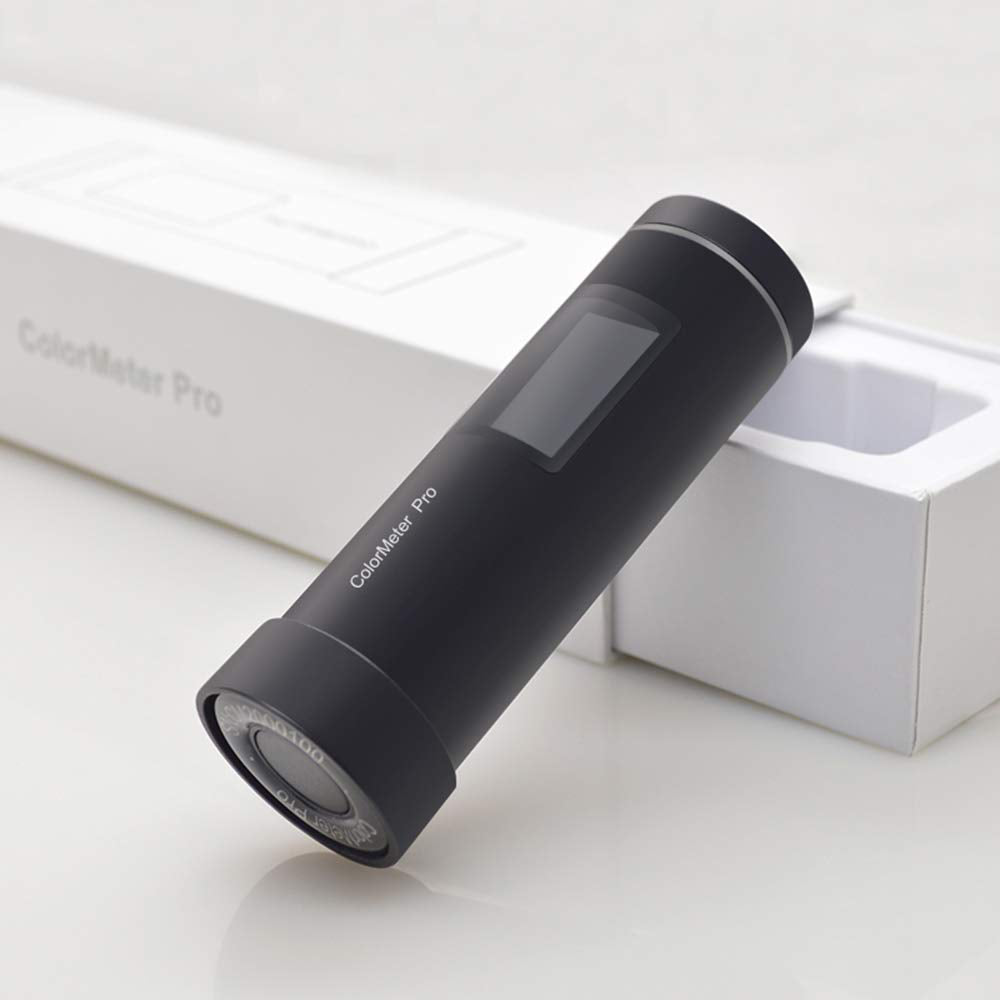

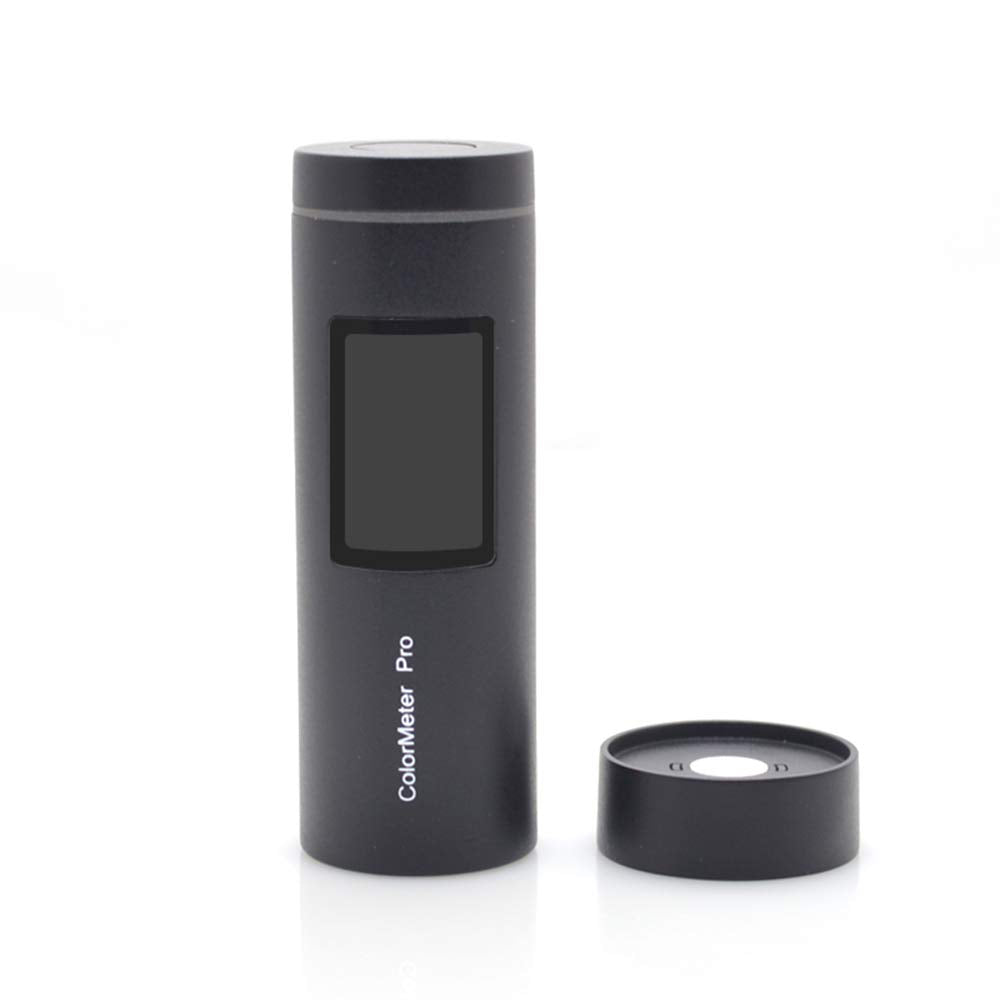

Intelligent small colorimeter Colormeter Pro high-precision color measurement and identification of color chromatic aberration

Description:

ColorMeter Pro is an innovation color measuring tool with powerful configuration to make color measurement easier and more professional; It support Bluetooth to connect with Android and ISO devices, ColorMeter Pro will take you into a new world of color management; It can be widely used to measure color value, color difference value and find similar color from color cards for printing industry, paint industry, textile industry, etc.

Features:

1. Measure Color Value



  • Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry andSCI mode to make measurement more accurate.





  • Adopt spectral sensor to provide reflectance data which make its performance much better than colorimeter.





  • To get correct L*a*b, L*Ch, RGB, Hex and other color value under light source D65 or D50.





  • It can measure whiteness index, yellowness index, color strength, color fastness, opacity and other 20 kinds of parameters with 26 kinds ofilluminants.



2. Measure Color Difference Value



  • “Pass” or “Fail”judgment can be seen from both instrument and APP.





  • ΔE *ab, ΔE * CH and other color difference formulas, display color difference value, color difference evaluation results.





  • Connect to App for color difference evaluation, color difference tolerance and parameters can be set in APP.



3. Portable and Massive Color Card Database



  • Bluetooth to connect with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards.
  • No need to carry big and heavy color card, we can find color card database from Colormeter Pro APP and find the closed/similar color easier and faster.



4. Artificial Intelligence for Accurately Measure Color



  • AI-based color search engine for accurately measure color;
  • Color can be collected anywhere and anytime



5. Innovation Design for Auto Black and White Calibration



  • Auto instrument black and white calibration for easier and correct color test
  • APP will remind for calibration if instrument works for long time
  • From APP we can do manual calibration and set calibration interval.



6. Single Instrument for Test and Save Test Value



  • 1.14 inches IPS display screen to show color information.
  • Data can be saved on instrument and instrument data can be synced into APP



Specifications:

Illumination and Viewing System:D/8, SCI (specular component included)

Color Spaces and Indices:

Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00), Whiteness Index (ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), Yellowness Index

(ASTM D1925,ASTM E313-00,ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M),Metamerism Index Milm, Munsell, Opacity, Color Strength

Light Source:LED (Full Wavelength Balanced LED Light Source)

Measure Aperture:8mm

Wavelength Interval:10nm

Wavelength Range:400-700nm

Repeatability:ΔE≤0.1 (when a white tile is measured 30 times at 5-second intervals after calibration)

Measurement Time:1s

Interface:USB, Bluetooth

Illuminants:A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84

Observer:2° and 10°

Display Screen:IPS Full Color Screen (135*240mm,1.14inches)

Battery:4.2V / 760mAh, Rechargeable, 10,000 continuous tests

Language:English and Chinese

Calibration:Auto

Software Support:Android, IOS, Windows

Weight:About 90g Instrument Size:Diameter 31mm , Height 102mm

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1%
