VTSYIQI Three Phase Power Quality Logger Analyzer Meter with  4 Groups Current Sensors  Current Range 10mA to 6000A for Analysis Voltage Current Power Electrical Energy Harmonic Phase and Other Electric Parameters

About this item:

◆ Package with Four Groups Current Sensor Current Range 10mA～6000A

◆ Analysis and diagnosis of all voltage parameters such as voltage, current, power, energy, harmonics, and phase.

◆ 4-channel current and voltage measurement, while capturing and recording power parameters and waveforms; Line voltage:Below 600V

◆ Multifunctiondisplay: Transient capture function; Starting current monitoring; Trend chart recording and storing function; Alarm function; Snapshot function; Setting function

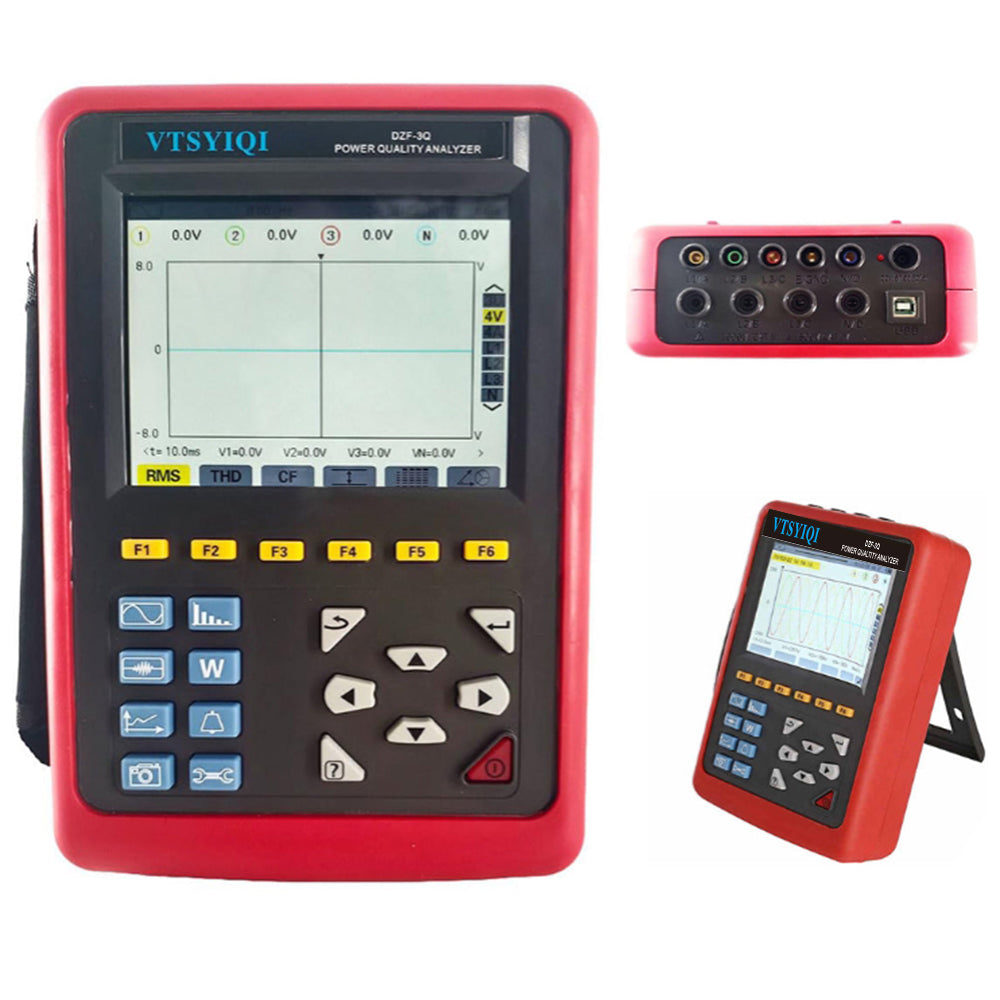

◆ The Power Quality Analyzer is a versatile, intelligent and comprehensive test instrument designed to test three-phase power quality in the field. It has the characteristics of simple man-machine operation, easy to use, large LCD color screen display, high resolution, anti-vibration structure and other features.

Please note that for the meter POA-3H we just ship you ONE HOST with 4 PCS 10A Sharp Nose Pliers Current Sensor & 4 PCS 100A Round Jaw Current Sensor & 4 PCS 1000A Round Jaw Current Sensor & the 4 PCS 6000A Flexible Coil Current Sensor .

It's better to download the user manual under the picture to review and study the specifications first. Then you can decide to buy it or not.

Main Function:

  1. It is a comprehensive test instrument of multifunctional, intelligent, man-machine operation simple. Comprehensive analysis and diagnosis all the voltage, current, power, electrical energy, harmonic, phase and other electric parameters.
  2. 4 channel current and 4 channel voltage measurement, simultaneously capturing and recording electric parameters and waveform, to provide with all the power quality information for working.
  3. Line voltage:Below 600V.

Technical Specifications

power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger.

Working Current:about 590mA, continuous working 8hours.

Display mode:LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm

Instrument Size:240mm×170mm×68 mm.

CT Size: 10A small sharpcurrent clamp: 7.5mm×13mm; 100A round jaw current clamp: 35mm×40mm; 1000A round jaw current clamp: 68mm×68mm; 6000A Flexible Coil Current Sensor (with Integrator) : Ф300mm.

Line Voltage:1.0V~2000V.

Phase Voltage:1.0V~1000V

Current: 10A current clamp: 10mA~10.0A; 100A current clamp: 0.10A~100A; 1000A current clamp: 1.0A~1000A; 6000 Flexible Coil Current Sensor (with Integrator) : 10A ~ 6000A;

Frequency:40Hz~70Hz.

Electricity Energy Parameter:W, VA, Var, PF, DPF, cosφ, tanφ.

Energy parameters:Wh, Varh, Vah.

Harmonic Wave:Yes, 0 - 50 times

Total harmonic distortion:Yes, 0 - 50 times, each phase

Expert Mode:Yes.

Transient Record Groups:150 groups

Voltage Flicker:Yes

Start Current Mode:Yes, 100 seconds

Three-phases Unbalance:Yes

Record:300 days (record 20 parameters simultaneously, every 5 seconds record 1 point) Min/Max Recorded Value:Yes, the max min value can be measured for a certain time Alarm:40 different types of parameter selection, 12800 group alarm logs

Peak:Yes.

Phasor Diagram Display:Automatic

Screenshot Capacity:60PCS

Communication Interface:USB.

Voltage Test Wire Length:3M

Current Clamp Wire Length:2M

Please refer to the pictures for other parameters.
