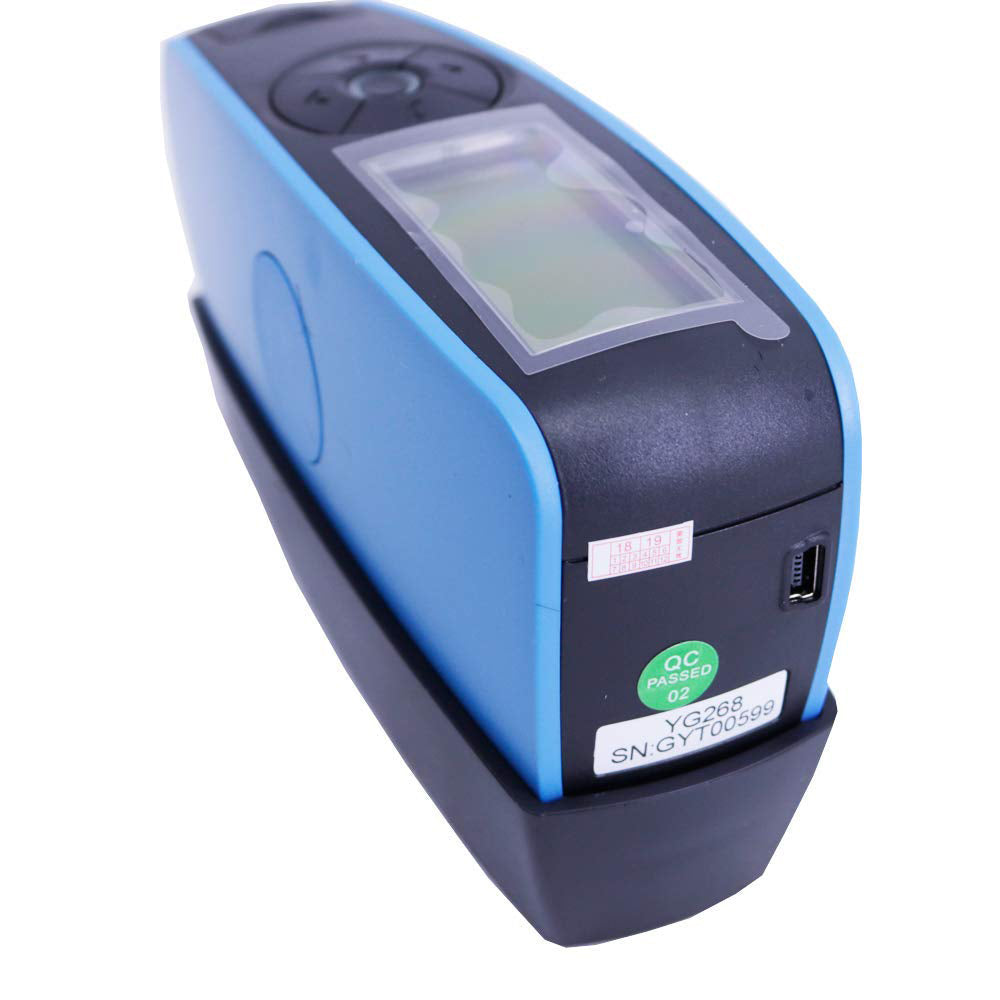

VTSYIQI Tri-Angle 20 60 85 Degree Glossmeter Tester with Range 0 to 2000GU 35000 Data Storage for Paints Coating Marble Tester

Feature

★Model:Tri-angle Gloss Meter ， Elegant Design combined with aesthetics and ergonomics;
★Measuring Angle:20° 60°85°，With auto-calibration function; Meet the first grade requirements of JJG696;
★Measuring Area: 20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU，Large storage to save over 35000 data; Auto Power-off within optional 30-120 seconds;
★Division Value:0.1GU，Comply to ISO2813,ASTM523, GB/T9754;With PC software for quality report, more extend functions;
★Measuring Modes:Basic mode; Statistic mode; Continuous mode; QC mode，With multi working modes and multi-functions for most customers’requirements.

Specification

Model : Tri-angle Gloss Meter

Measuring Angle : 20° 60°85°

Measuring Area :

20°: 0-2000GU

60°: 0-1000GU

85°: 0-160GU

Division Value : 0.1GU

Measuring Modes : Basic mode; Statistic mode; Continuous mode; QC mode

Measuring Time : 0.5S

Repeatability : 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU

Accurate : Conform with JJG696 first grade requirements of gloss meter

Auto Power-off Time : Within 30s-120s

Long-time Calibration : Automatically check and made the calibration

Language : Chinese & English

Storage : 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)

Display : 2.3 inch white and black screen

Size : 160*52*84mm

Weight : About 300g

Power Supply : 1pc dry-cell battery(can measure 10000 times) or use USB Charge

Interface : USB & Bluetooth 2.1 version

PC Software : GQC6 QC software can printing testing report and with more extended functions

Operation Temperature Range : 0-40℃（32-104° F）

Storage Temperature Range : -20-50℃（-4-122° F）

Humidity Range : < 85% RH, without condensation

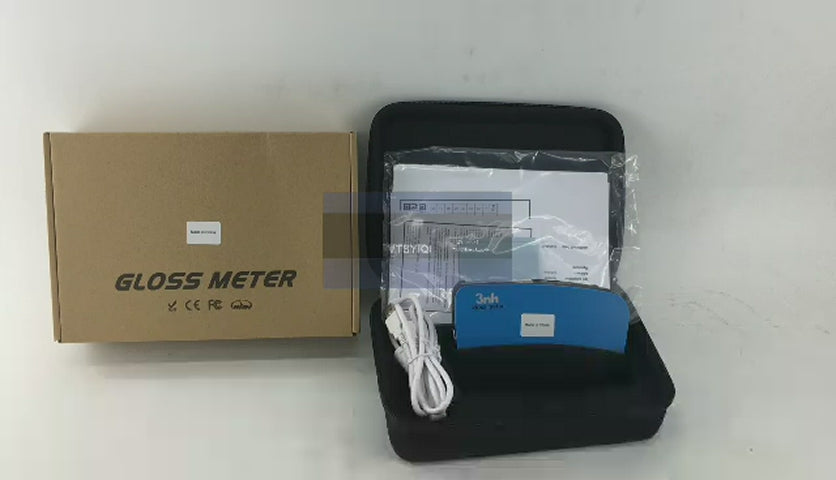

Standard Accessories : USB cable, user manual, calibration plate, QC software

Optional Accessories : Miniature printer
