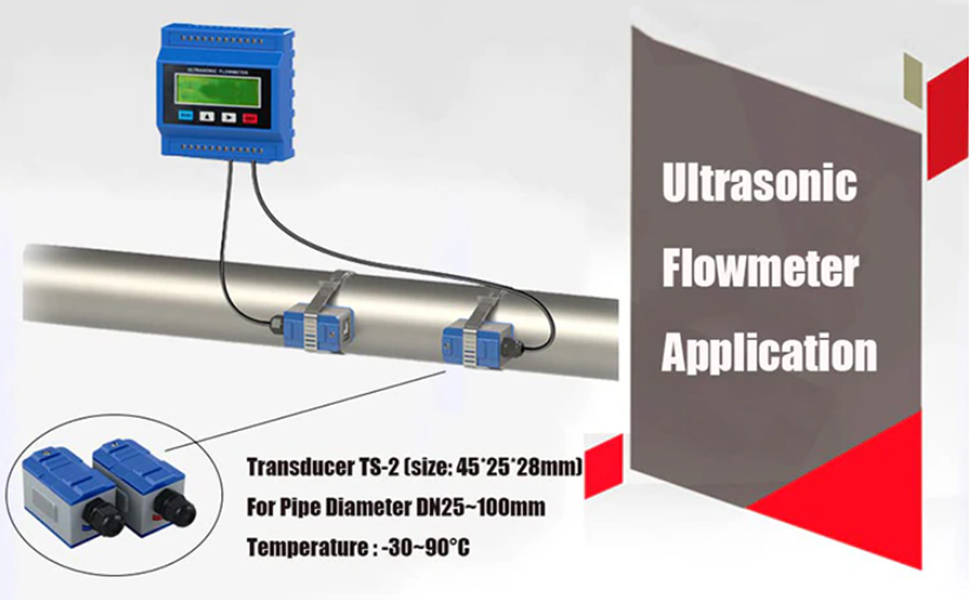

VTSYIQI Ultrasonic Flow Meter Flowmeter With Waterproof Clamp on Transducer DN50-700mm 1.97-27.56in

VTSYIQI Ultrasonic Flow Meter Flowmeter With Waterproof Clamp on Transducer DN50-700mm 1.97-27.56in

常规价格 $276.00 USD
常规价格 促销价 $276.00 USD
销售额 售罄
结账时计算的运费

Product Description
◆Accuracy:"+/-1%
◆Velocity range:0~+/-10m/s, Bi-directional measurement
◆Pipe size:DN50-700mm
◆Temperature:-30~160C
◆Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc.

Product Description

The manual is an electronic version. You can also download the manual directly in the detailed description. Feature:

Accuracy:"+/-1%

Velocity range:0~+/-10m/s, Bi-directional measurement

Pipe size:DN50-700mm

Temperature:-30~160C

Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc.

Pipe material:Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

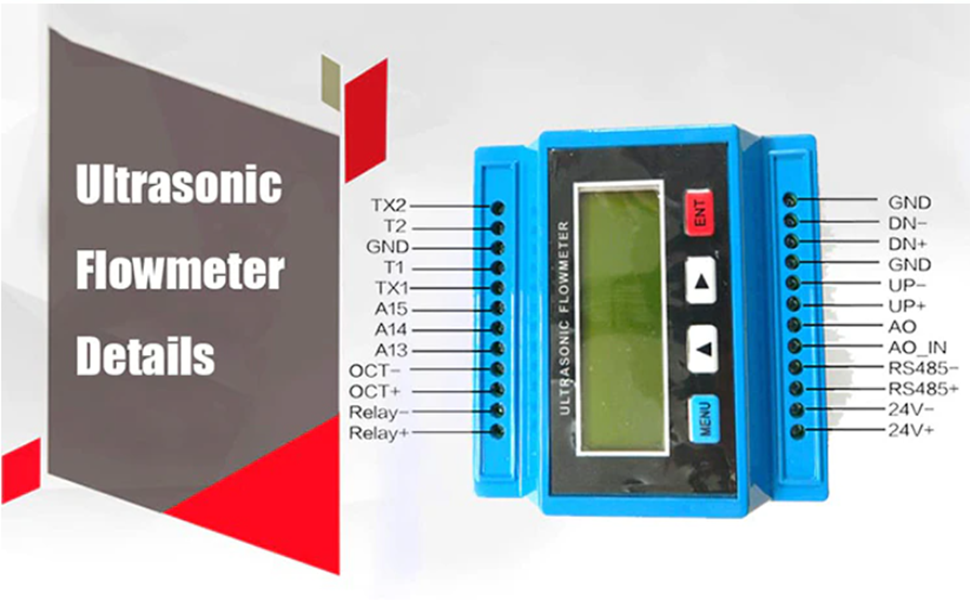

Signal output:

1 way 4-20mA output

1 way OCT pulse output

1 way Relay output

Signal input:3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.

Interface:RS485, support MODBUS

Power supply:DC8~36V or AC85~264V
