VTSYIQI Ultrasonic Thickness Gauge 0.7 to 300.0mm with CT-2.5 coarse Crystal Probe φ12mm 2.5MHz and PT-5 Standard Probe φ10mm 5MHz

Ultrasonic Thickness Gauge SA40

1.Introduction:

SA40 thickness gauge is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.igh temperature probe.

2.Specifications:

• Technique: pulse echo with dual probe

• Display: 4 digits LCD with backlight

• Measuring range: 0.7 to 300.0mm

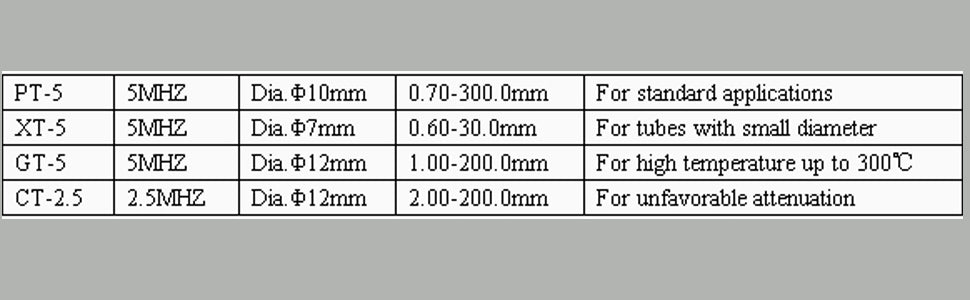

• CT-2.5 coarse Crystal Probe φ12mm 2.5MHz

• Measuring range: 2 to 200.0mm

• PT-5 Standard Probe φ10mm 5MHz

• Resolution : 0.01mm,0.8-99.99mm, 0.1mm,100.0-300.0mm

• Velocity range: 500-9999m/sec.

• Display circle: 1 sec.

• Coupling indication

• Memory: 400 data can be stored and re-readable

• Units: mm or inch

• Low battery indicator on LCD

• Auto shut-off: after 5 min. of non-use

• Power: 2 ea. 1.5V AA alkaline cells

• Operating temperature: 0-40°C

• Operating humidity: 20-90%RH

• Size: 124x67x30mm

• Weight: 240g
