VTSYIQI Ultrasonic Thickness Gauge Meter 0.75-400mm with Probe Diameter 6mm Frequency 7mhz

VTSYIQI Ultrasonic Thickness Gauge Meter 0.75-400mm with Probe Diameter 6mm Frequency 7mhz

常规价格 $260.00 USD
常规价格 促销价 $260.00 USD
销售额 售罄
结账时计算的运费
  • Product Description

  • Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
  • Transducer models are available for special application, including for coarse grain material and high temperature applications.
  • Probe-Zero function, Sound-Velocity-Calibration function
  • Two-Point Calibration function.
  • Two work modes: Single point mode and Scan mode.

Product Description

VTSYIQI
VTSYIQI

VTSYIQI Ultrasonic Thickness Gauge Meter with 0.75-300mm for Metal Steel Aluminum Copper Plastic

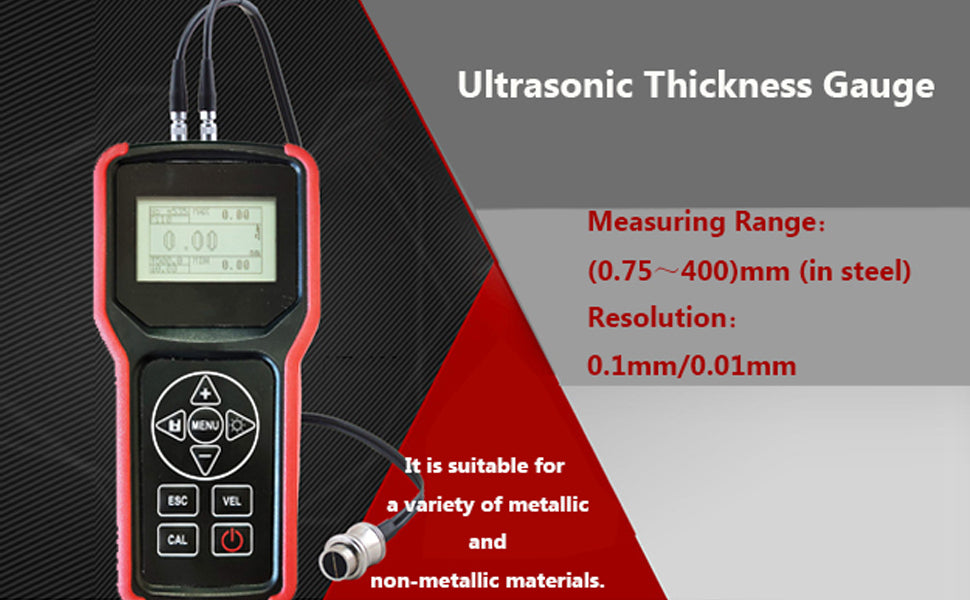

Overview:

The model X series are digital ultrasonic thickness gauge. Based on the same operating principles , the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. It is suitable for a variety of metallic and non-metallic materials.

VTSYIQI

Product Specifications:

Display:4.5 digits LCD with EL backlight

Measuring Range:(0.75~400)mm (in steel)

Sound Velocity:(1000~9999) m/s

Resolution:0.1mm/0.01mm

Accuracy:±(0.5%H+0.01)mm; H is thickness

Measuring cycle:5 measurements readings per second for single point measurement, and 25 per second for Scan Mode.

Storage ability:memory 700 group (700 values)

VTSYIQI

Operating type:Pulse-echo and echo-echo

Units:mm/inch

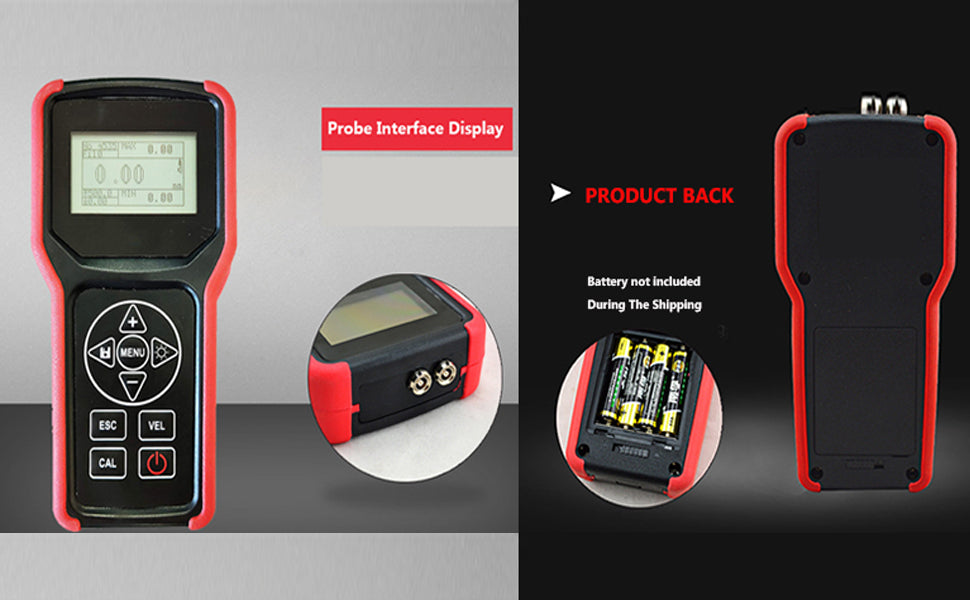

working voltage:3V 4 AA size, 1.5 Volt alkaline batteries.

work duration :≧100h

communication port:RS232. connect the printer and PC

outside storage connection:USB connection. Can connect U plate

size:150mm×74mm×32 mm

weight:245g

Function:

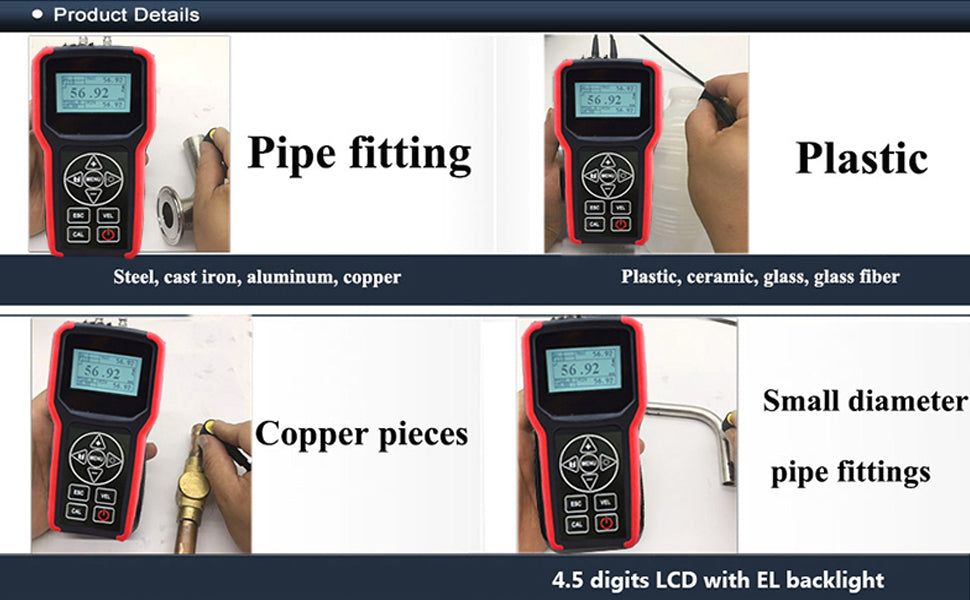

1, Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2, Transducer models are available for special application,including for coarse grain material and high temperature applications.

3, Probe-Zero function, Sound-Velocity-Calibration function

4, Two-Point Calibration function.

5, Two work modes: Single point mode and Scan mode.

6, Coupling status indicator showing the coupling status.

7, Battery information indicates the rest capacity of the battery

8, Auto sleep and auto power off function to conserve battery life.

9, Optional software to process the memory data on the PC And U plate

10) Optional thermal mini-printer to print the measured data via RS232 port for X series

Configuration:

Standard Configuration

1 Main engine-1,2 Standard probe(5MHz)-1,3 Instrument case-1,4 Random data-1

Optional Configuration

8 Coarse grain probe(2MHz),9 Standard90 °probe(5MHz),9 Micro-diameter probe(7MHz),10 Temperature probe(5MHz),11 U Plate,12 Micro Printer-1,13 Print Cable-1,14 Data management software-1,15 Communication cables-1

Model: Digital Display Push-pull Force Meter

Maximum load value: 500N; 50kg; 110Lb; 1800Oz

Load division value:0.1N; 0.01kg; 0.01Lb; 1Oz

Sensor structure: Inner sensor

Accuracy: ±1%
